How to Design a Chrome Effect Style in Photoshop

Hello everybody!!  Thanks again for joining with us today and in this tutorial we are going to discuss about how to create a Chrome effect Style in Photoshop.

We are going to do this Using just layer styles. The whole process is very simple but it might require some tweaking and a little bit of time. The above design will be the final outcome of what we are going to create.

Resources

Step 01

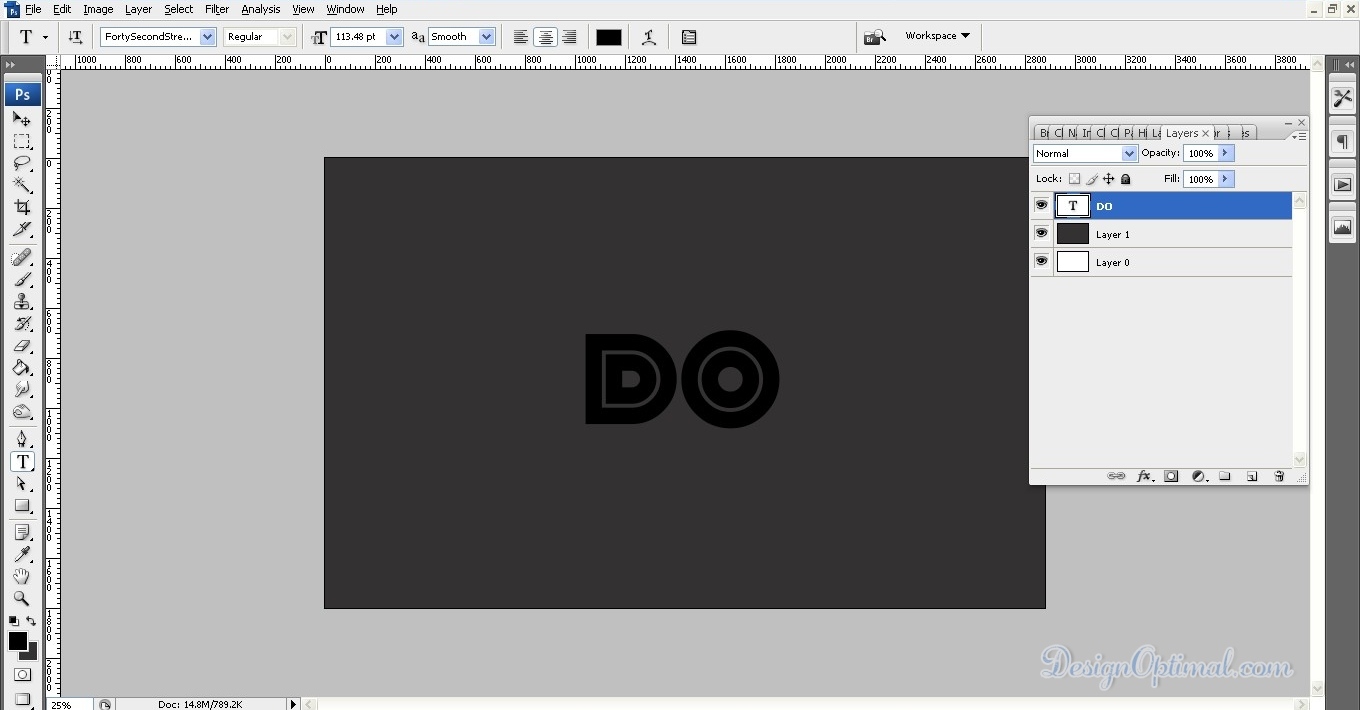

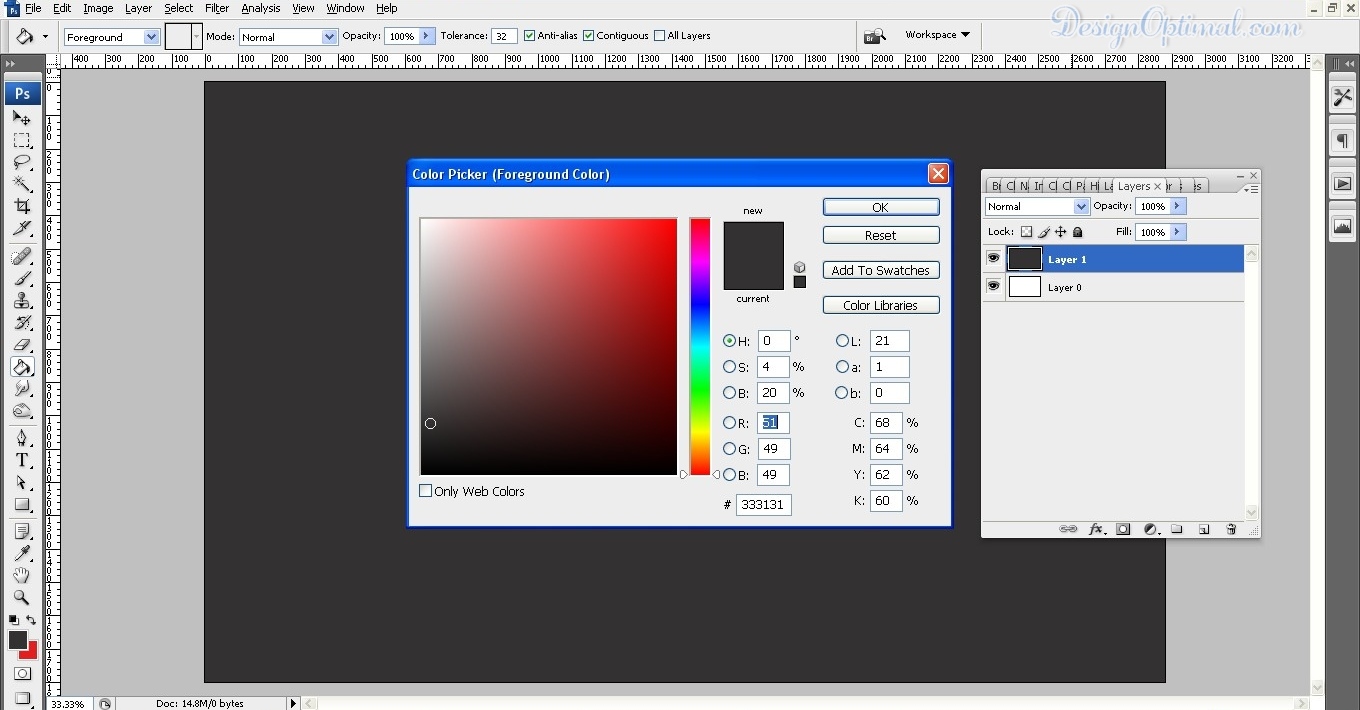

  • Open Photoshop and create a new document. We are using 2880×1800 for the size, so we can use it as desktop wallpaper for your PC/ laptop. After that put the logo/symbol you want to apply the chrome style. For mine I am going to use Design Optimal logo, if simplified DO logo, I have used FortySecondStreet HB as the font for the DO logo for this Tutorial. Now save the PSD as name of Chrome Effect.PSD. Now fill the background with #333131.
SCREEN_01 (click to zoom image)
SCREEN_01 (click to zoom image)
SCREEN_02 (click to zoom image)
SCREEN_02 (click to zoom image)

Step 02

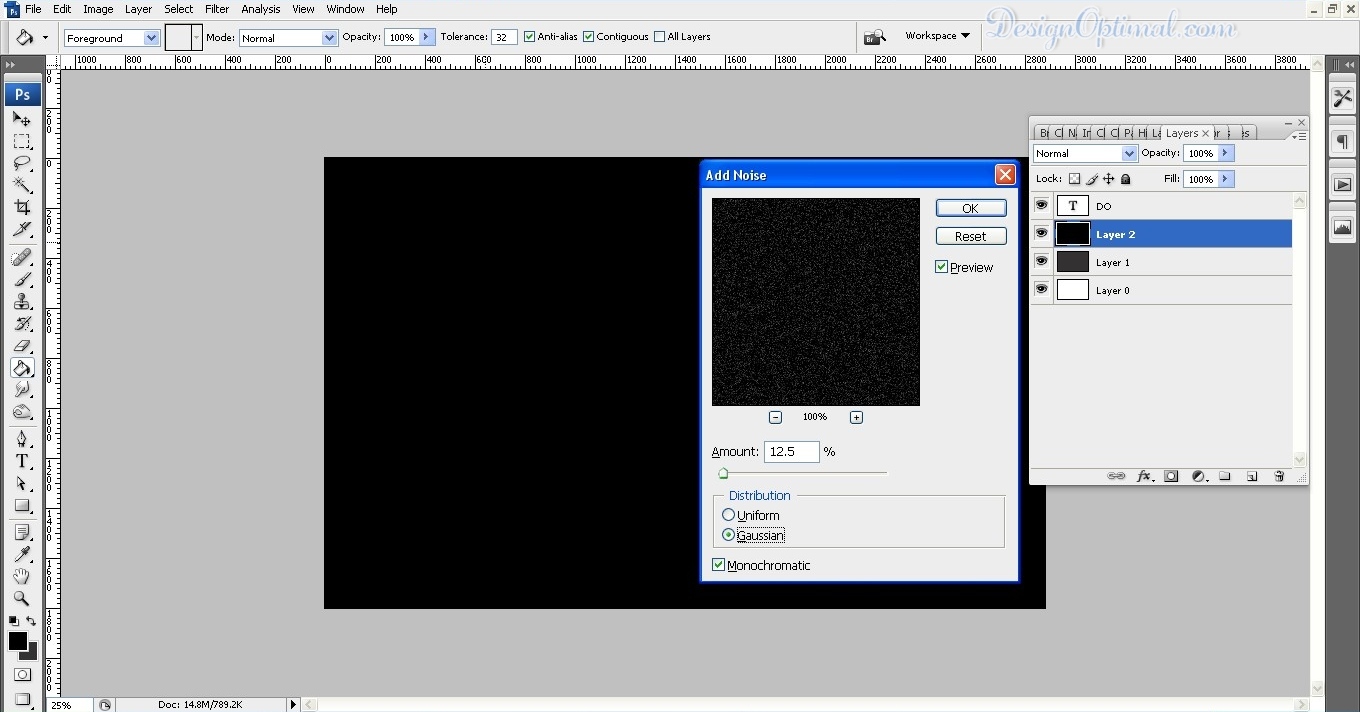

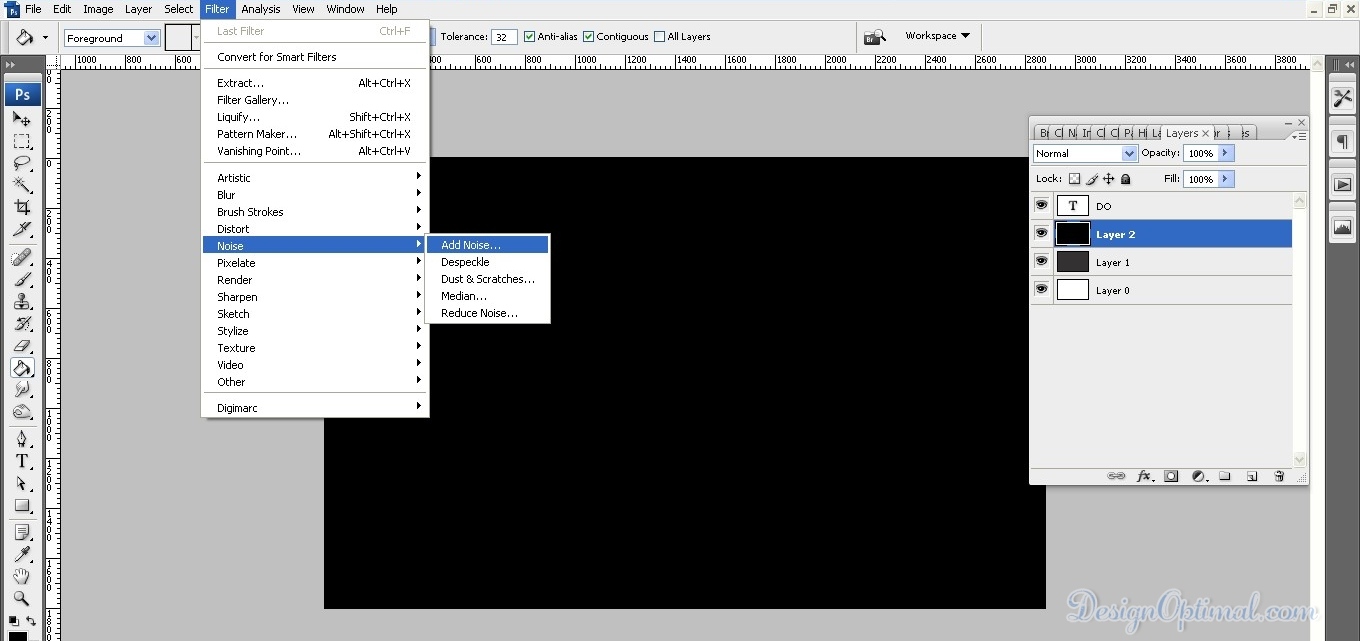

  • Now fill the document background with Solid black and after that, go to Filter>Noise>Add Noise. Use 12.5% for the Amount and select Gaussian and Monochromatic.
SCREEN_03 (click to zoom image)
SCREEN_03 (click to zoom image)
SCREEN_04 (click to zoom image)
SCREEN_04 (click to zoom image)

Step 03

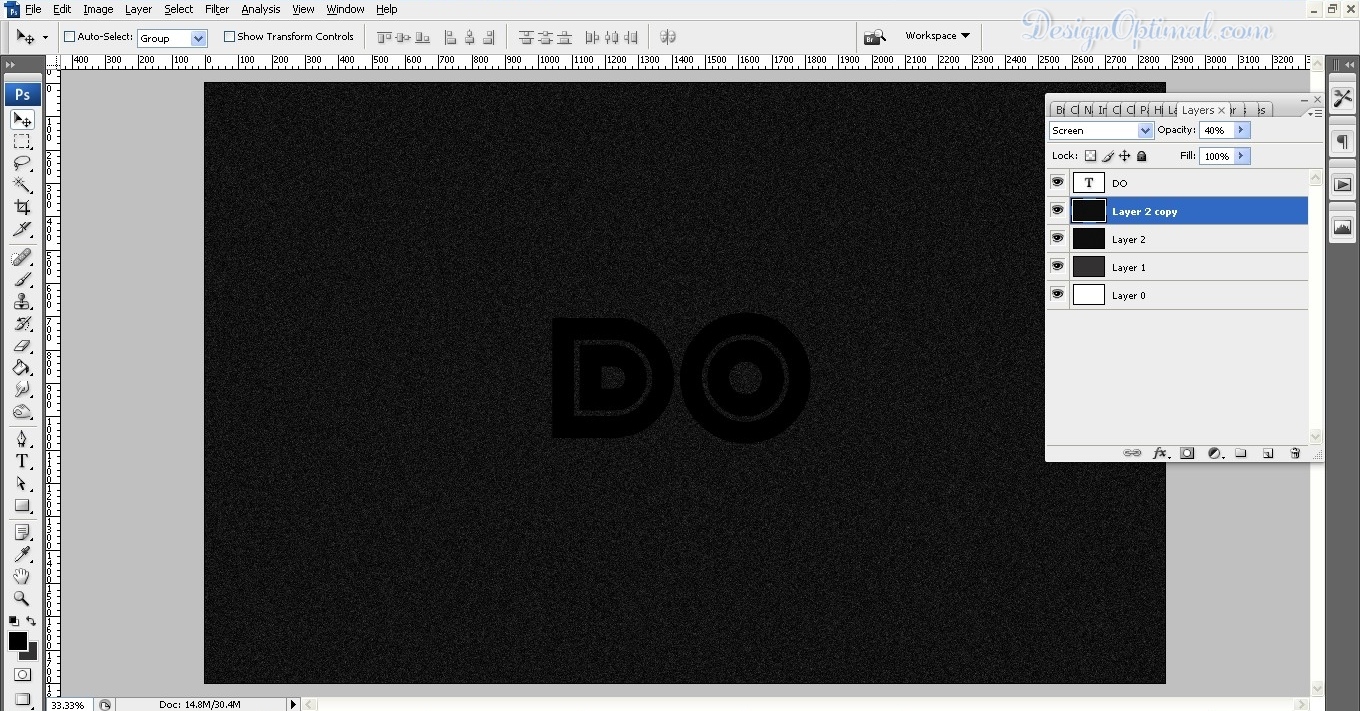

  • Duplicate the layer and for the one on top go to Edit>Transform>Flip Horizontal. After that, change the Blend Mode to Screen and the opacity to 40%.
SCREEN_05 (click to zoom image)
SCREEN_05 (click to zoom image)

Step 04

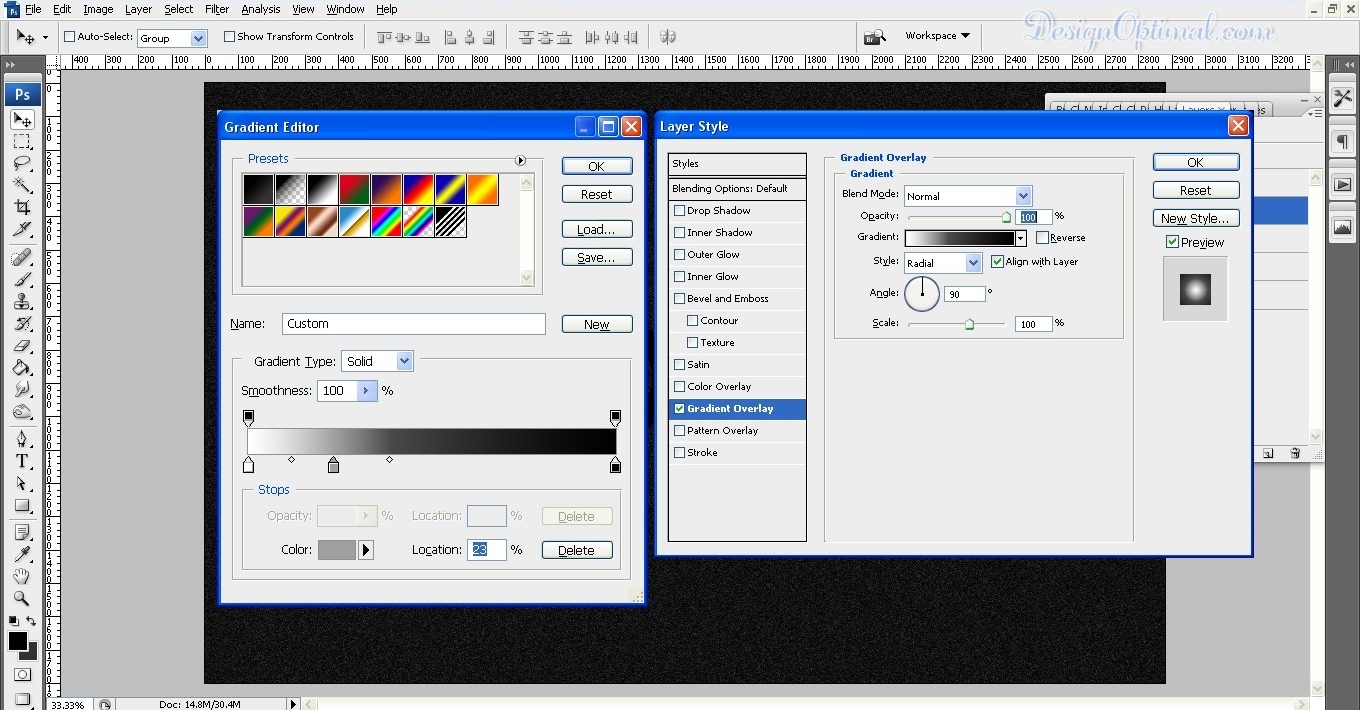

  • Now Group the 2 layers with noise and then for that layer group, apply a layer style. Select Gradient Overlay and use Radial with a light grey in the middle and black for the edges.
SCREEN_06 (click to zoom image)
SCREEN_06 (click to zoom image)
SCREEN_07 (click to zoom image)
SCREEN_07 (click to zoom image)

Step 05

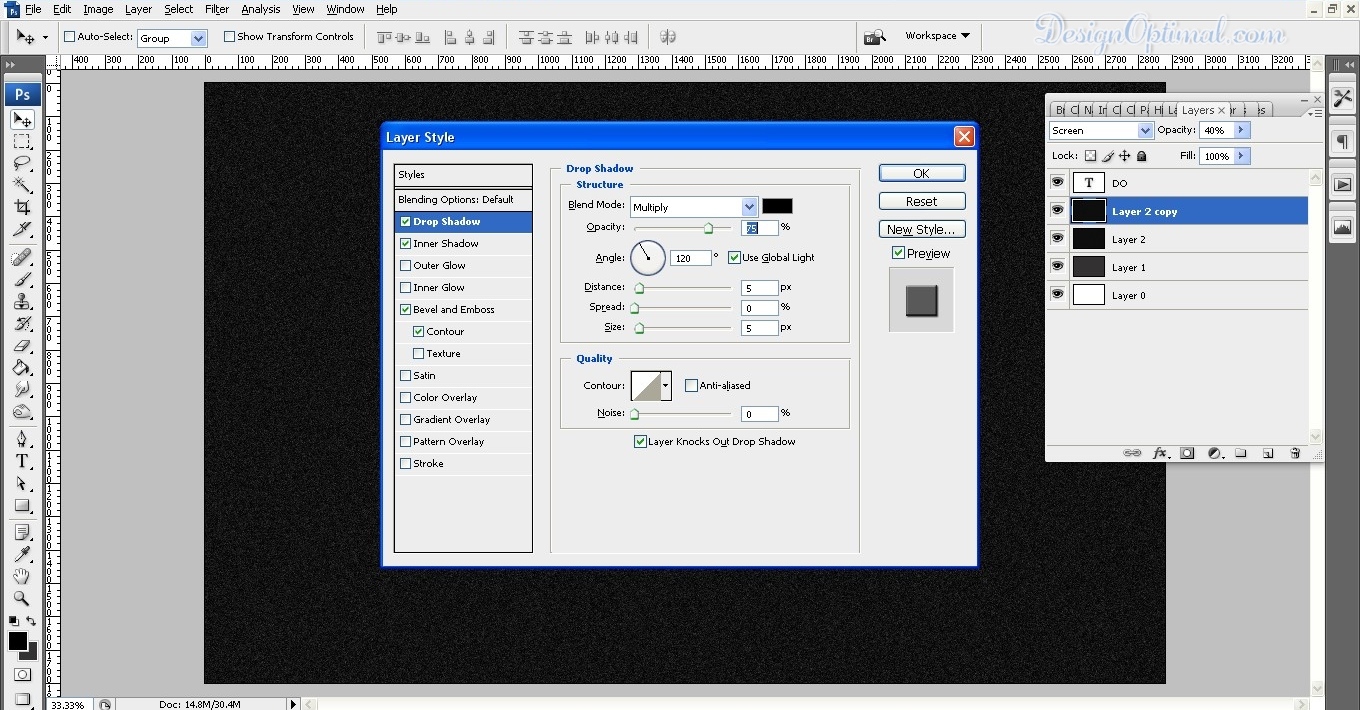

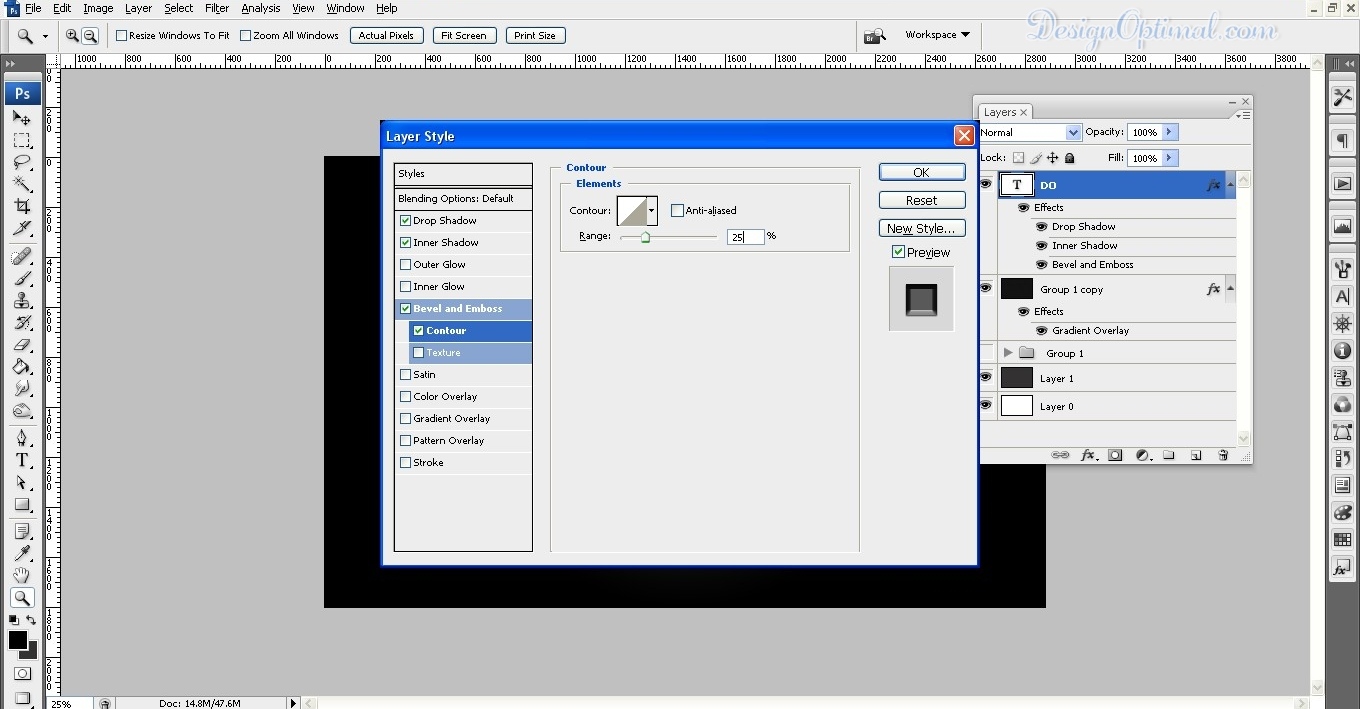

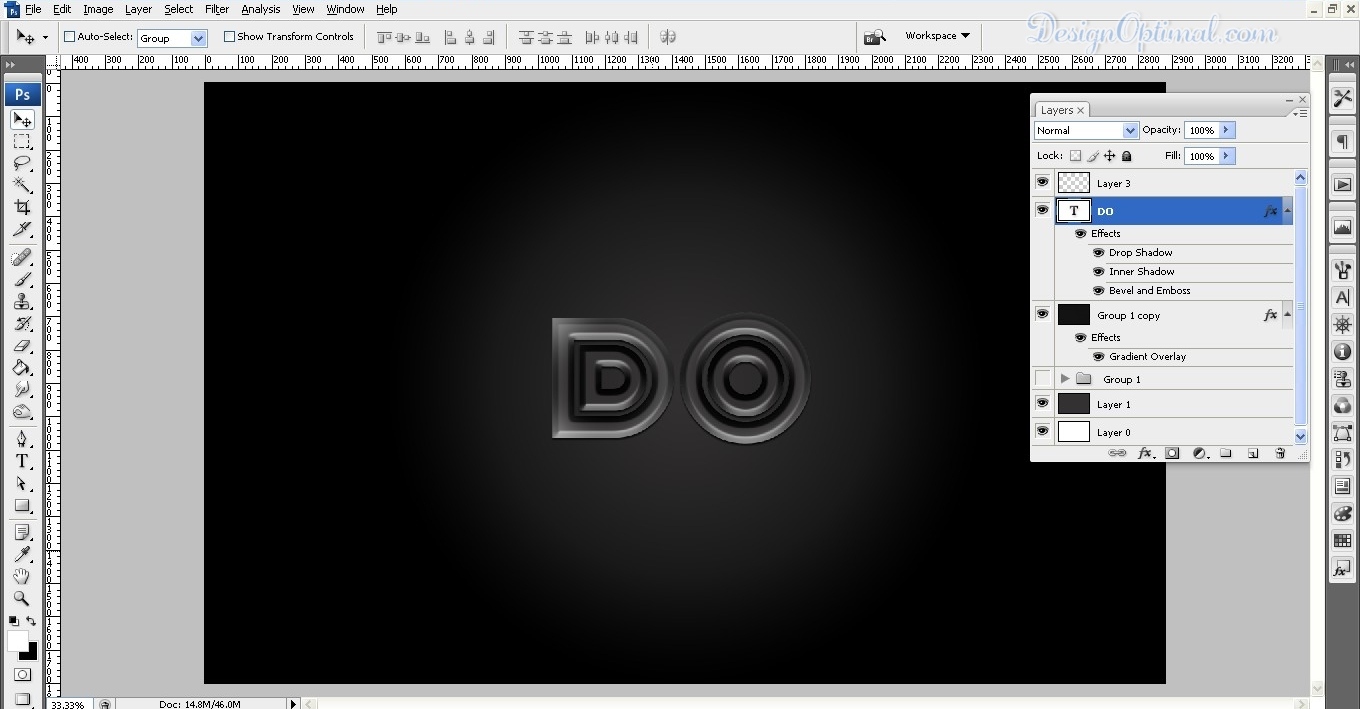

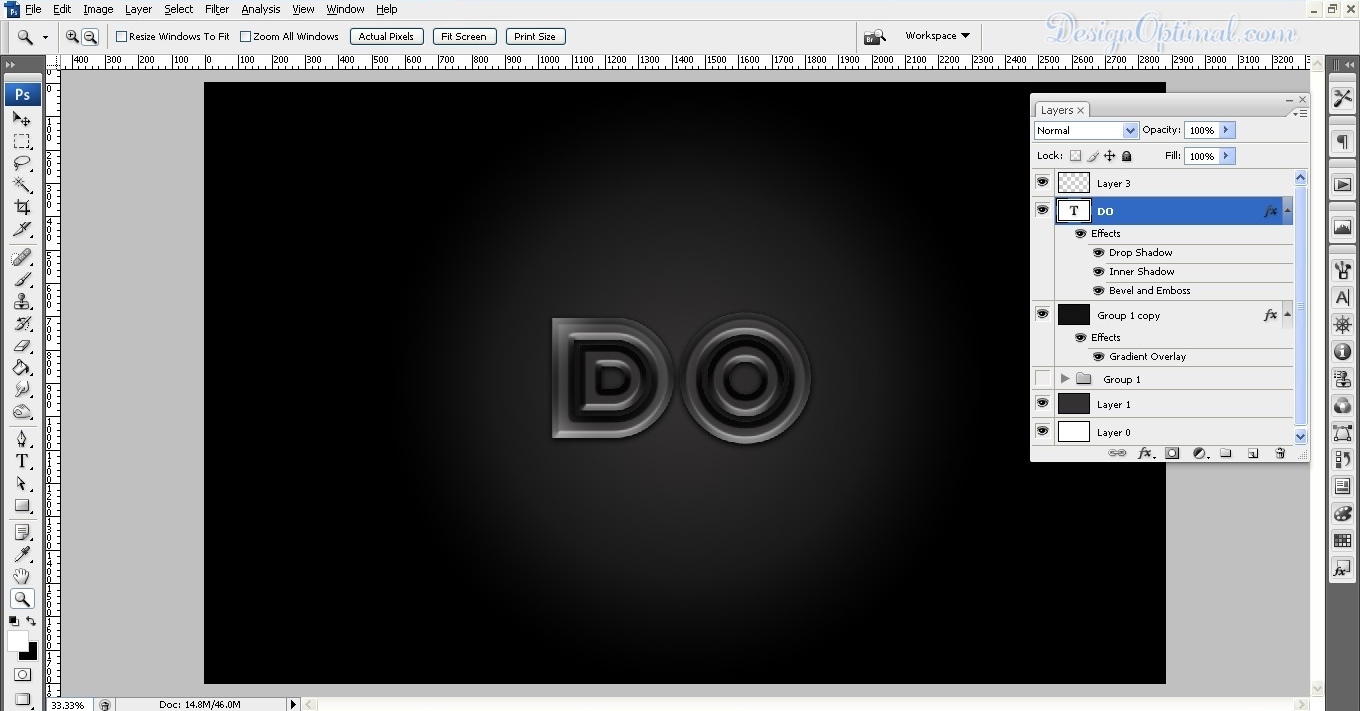

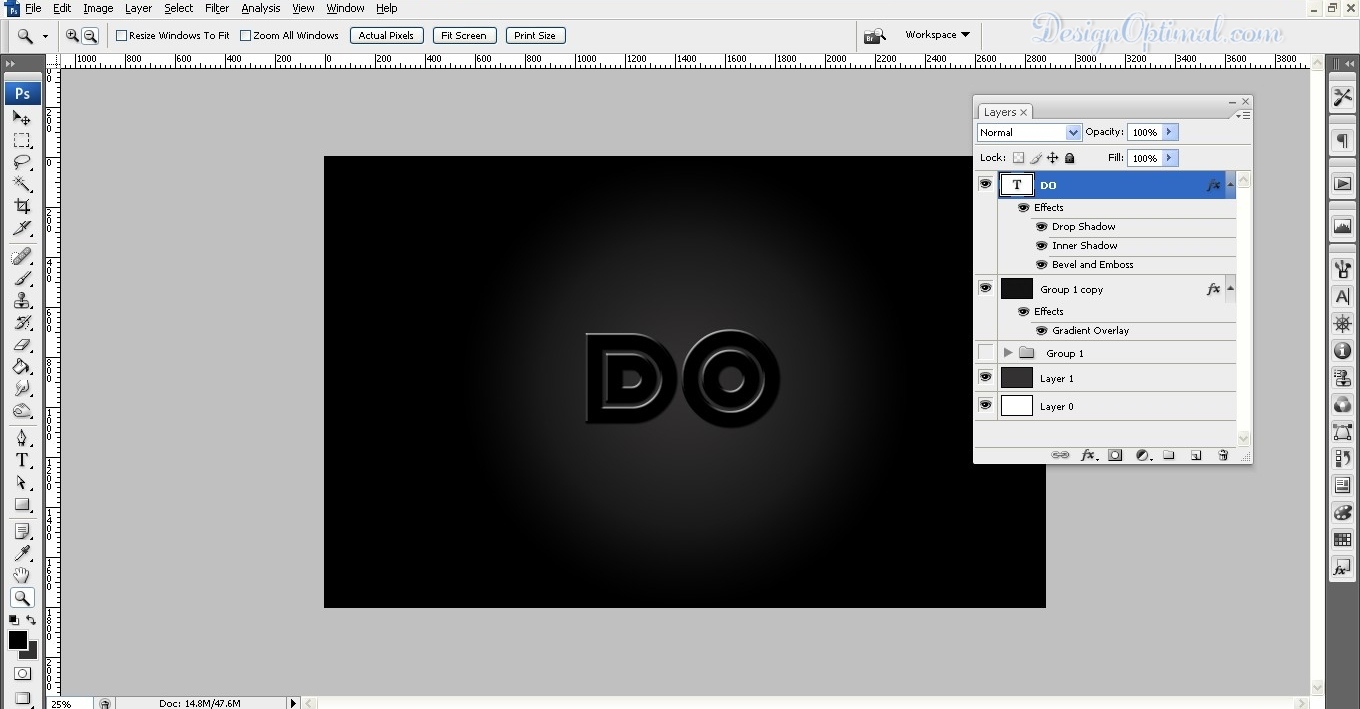

  • Select the symbol and then go to Layer>Layer Style>Blending Options. Use the settings like the images below. These values might be variant according to your logo or symbol. Now use the settings like the images below.
SCREEN_08 (click to zoom image)
SCREEN_08 (click to zoom image)
SCREEN_09 (click to zoom image)
SCREEN_09 (click to zoom image)



SCREEN_10 (click to zoom image)
SCREEN_10 (click to zoom image)
SCREEN_11 (click to zoom image)
SCREEN_11 (click to zoom image)
SCREEN_12 (click to zoom image)
SCREEN_12 (click to zoom image)
SCREEN_13 (click to zoom image)
SCREEN_13 (click to zoom image)
SCREEN_14 (click to zoom image)
SCREEN_14 (click to zoom image)

Step 06

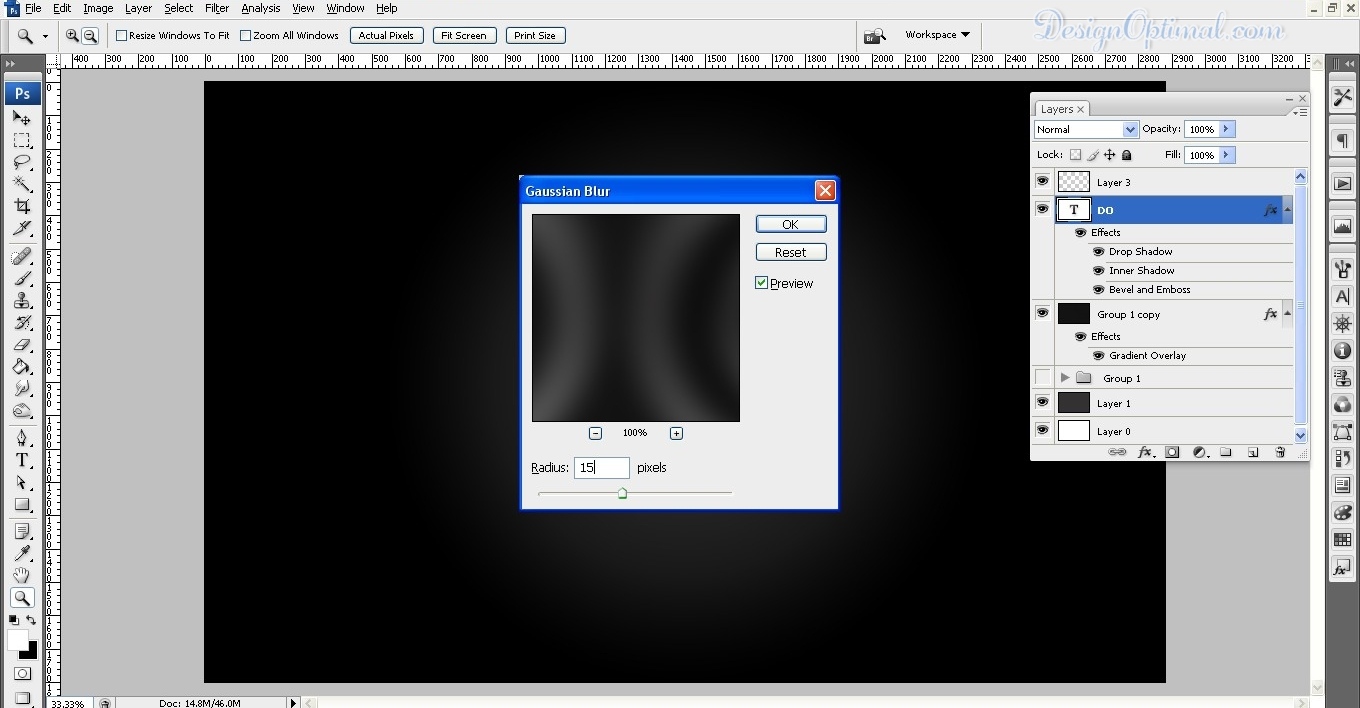

  • Select all layers and duplicate them. Merge all the new duplicated layers into one layer and then go to Filter>Blur>Gaussian Blur. Use 15 for the amount. After that, change the Blend Mode to Screen at 50% and go to Layer>Add Layer Mask. With the Brush Tool, make only the symbol area visible so this layer will create a sort of glow effect.
SCREEN_15 (click to zoom image)
SCREEN_15 (click to zoom image)

Step 07

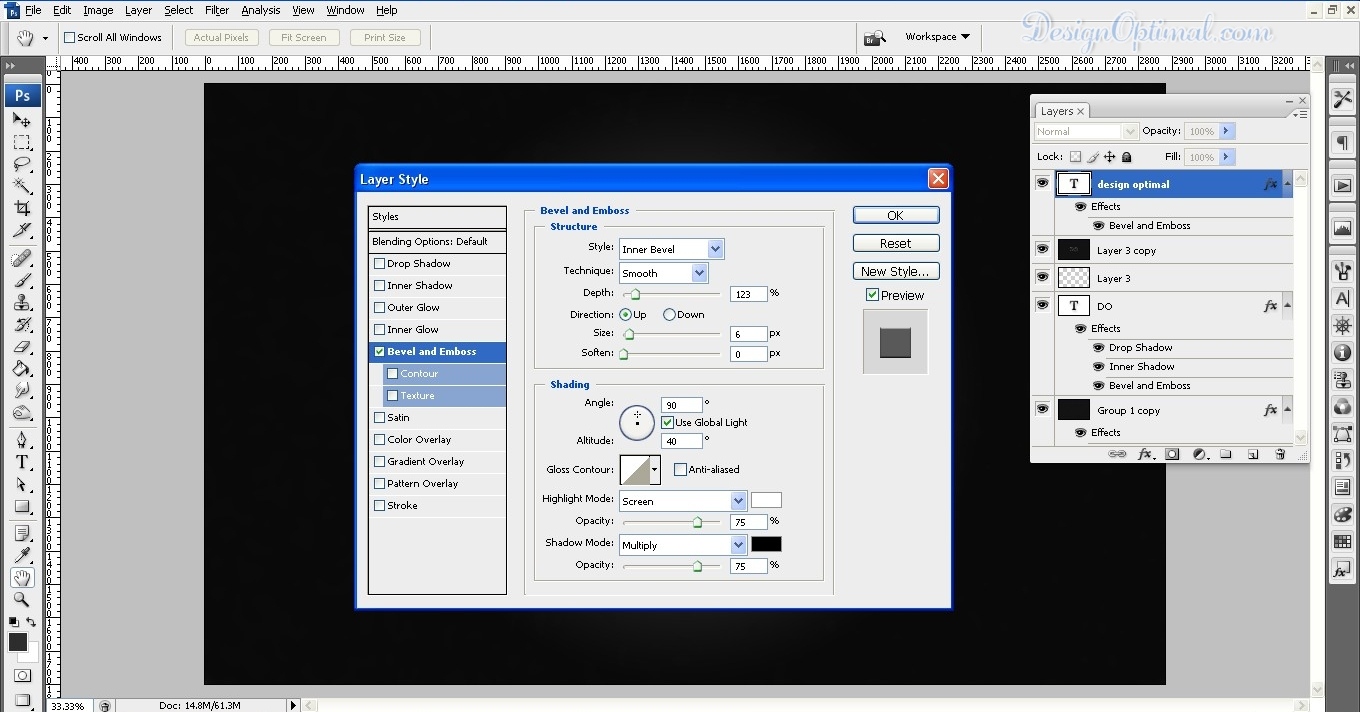

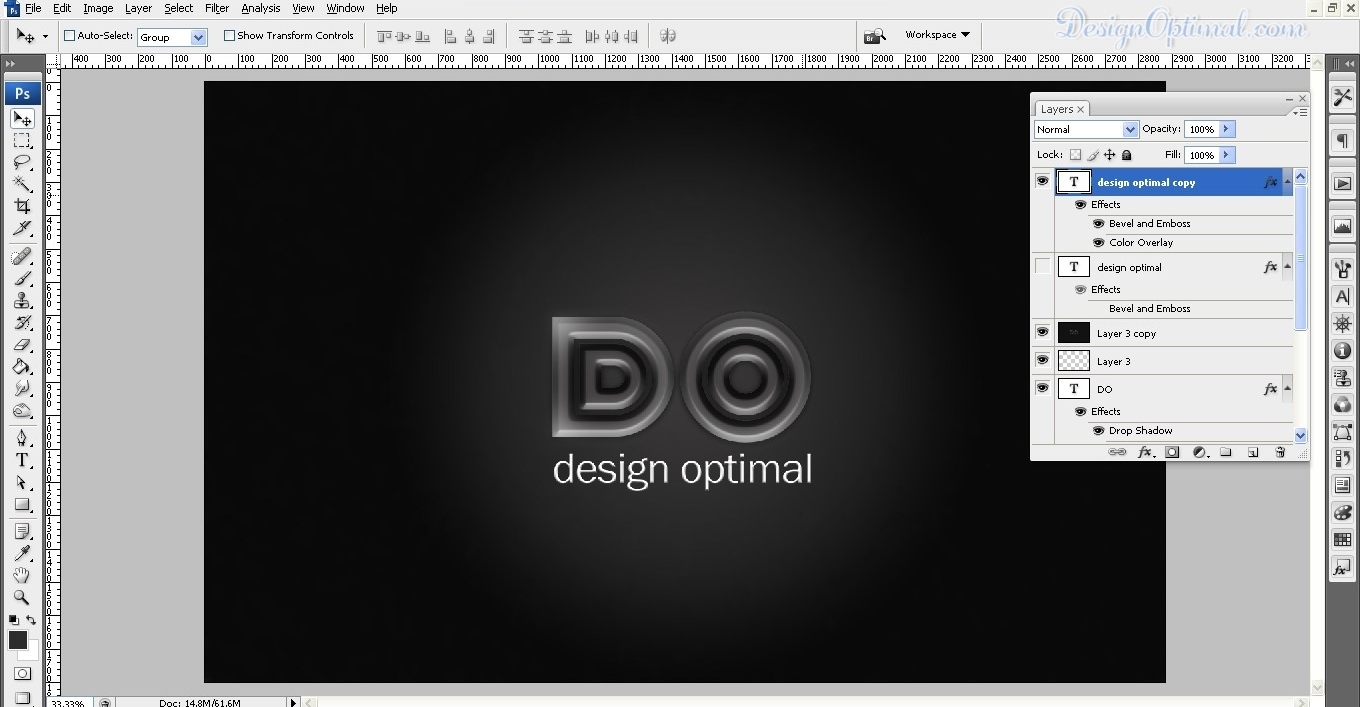

  • Now for the end results I have typed the design optimal text and added the some effects to it. It will make the logo much more attractive.

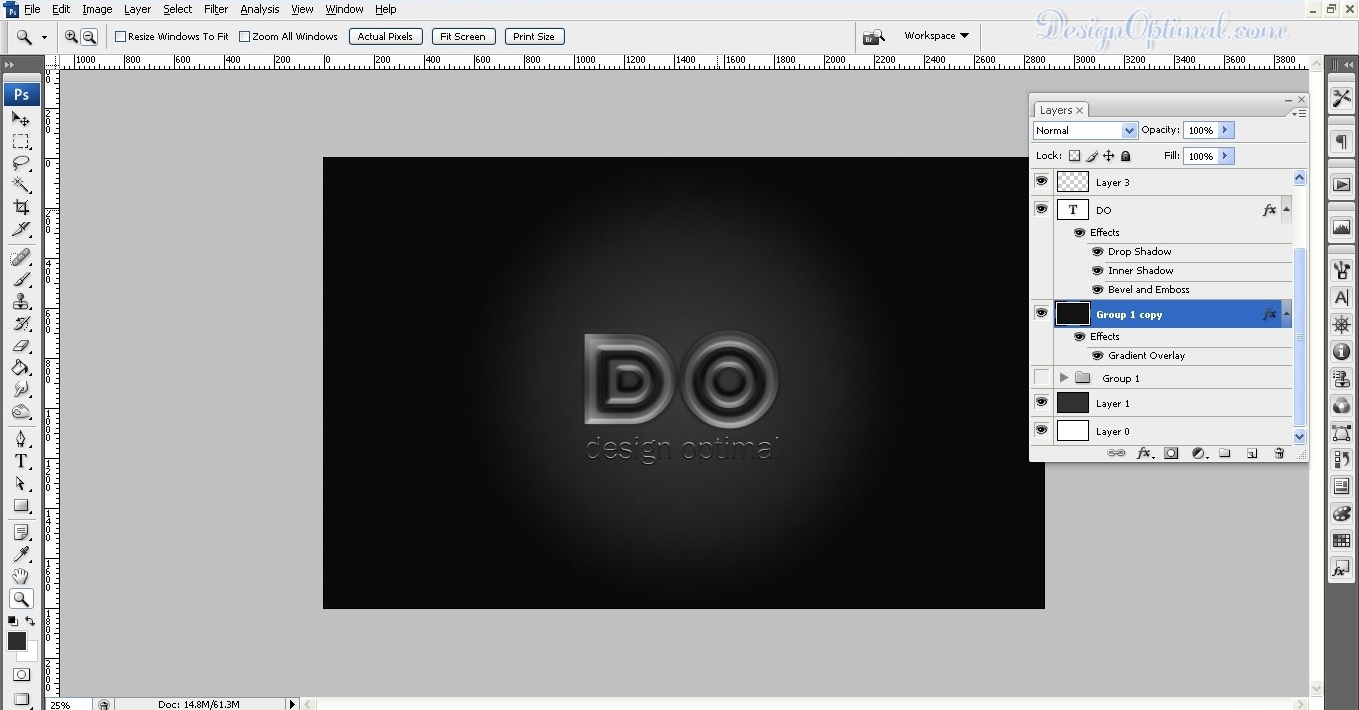

SCREEN_16 (click to zoom image)
SCREEN_16 (click to zoom image)
SCREEN_17 (click to zoom image)
SCREEN_17 (click to zoom image)
SCREEN_18 –end result (click to zoom image)
SCREEN_18 –end result (click to zoom image)
